Introduction

FIX Introduction

This document details the Financial Information eXchange (FIX) protocol used by the Cypator Crypto trading ECN. Cypator uses FIX protocol to stream (Taker API), retrieve (Maker API) prices, and handle orders with a counterparty, referred to generically in this document as the “Client”. To communicate with the ECN via the FIX protocol, there must be IP connectivity between Cypator and the Client, and the Client must initiate the connection. The Client must support the FIX 4.4 or FIX 4.2 protocol to communicate properly with the ECN. The diagram below presents a high-level overview of the FIX-based FX electronic dealing architecture.
Cypator provides two FIX sessions for interaction with Clients. The first session is specifically for price communication and the second is for trading. Clients need to ensure that the appropriate session is used when messages are sent to the ECN.
This document defines the Cypator FIX API for sending out market prices, receiving orders and providing trading execution notifications via the Cypator FIX gateway

The FIX gateway is accessible with an OpenVPN connection.
There are two interfaces: FIX Market data (price) and FIX Trading (orders).
FIX Trading and Fix Market data require a valid SenderCompId, login, and password specified in the Logon message.
The protocol is based on FIX protocol 4.4 FIX protocol 4.4. Refer to FIX 4.4 documentation if there is no tag information specified.
FIX 4.2 is also supported, but is more limited and less recommended
The FIX gateway supports a subset of messages and tags listed in this document.
Price is represented in natural value (e.g. 25000.01 for BTC/USD).

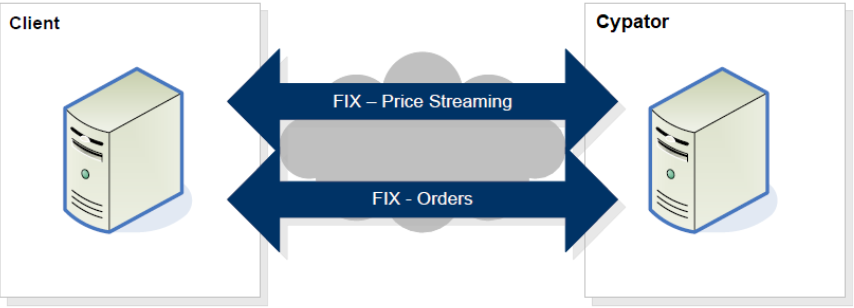

High-level overview

FIX Connectivity

The following are the ways a client can connect to the API:
- Internet over VPN
VPN connectivity is routed to the nearest geographical instance - New York, London, or Singapore.
Access to the platform has to go through SSL encrypted TCP connection over the Internet. If needed, Cypator can provide all necessary keys and certifications.
Only one market and trade connection per client is supported.

FIX Session Time

The session will be up the full week with a 3-minute scheduled restart on a weekly basis every Sunday. The exact time for restart will be scheduled with the client.
- StartDay=Sunday
- EndDay=Sunday
- StartTime=07:03:00
- EndTime=07:00:00

FIX Sessions

The Cypator trading interface supports the two types of orders
- Limit
- Market
The Cypator trading interface supports the following Time in force (TIF):
- IOC - Immediate or Cancel
- FOK - Fill or kill
- Market - Best attempt at market price

FIX Post Trade

For clients or partners requiring a post-trade message (supported only for Taker API), and that can code to the Cypator FIX API the following Trade Capture Report (AE) message will be sent. In addition, in the event of a communication breakdown, the client can send a “Request Trade Capture Report” message and include in it all the Order IDs for which they want to verify if a trade was created or not.

FIX Messages, Products and Support

The API supports the following:
- FIX version 4.4 (recommended) and 4.2
- Single session or Dual session.
- Product type - Spot trading only.
- Assets - any crypto coin and FIAT currency are supported. Limitations on what Assets are allowed are defined in the application and business agreement.
- For FIX 4.2 and FIX 4.4 dual sessions - if we receive a message on the wrong session- it will be rejected. In addition, FIX 4.2 doesn’t support all message types.

Message type	Fix Version Supported	Market Session	Trading Session
Heartbeat <0>	4.2/4.4	Y	Y
Test Request <1>	4.2/4.4	Y	Y
Resend Request <2>	4.2/4.4	Y	Y
Reject <3>	4.2/4.4	Y	Y
Sequence Reset <4>	4.2/4.4	Y	Y
Logout <5>	4.2/4.4	Y	Y
Logon	4.2/4.4	Y	Y
Market Data Request	4.2/4.4	Y	N
Market Data Request Reject	4.2/4.4	Y	N
Market Data-Snapshot/Full Refresh	4.2/4.4	Y	N
New Order Single	4.2/4.4	N	Y
Execution Report <8>	4.2/4.4	N	Y
Trade Capture Report	4.4	N	Y
Trade Capture Report Request	4.4	N	Y
Trade Capture Report Request Ack	4.4	N	Y

FIX Duplicate check (recovery)

Taker API There is always a possibility of duplicate trades being sent out. For example due to a network disconnection. The client is expected to be able to identify duplicate trades and reject them, by using the tag OrderID (37) with the combination of tags PossDupFlag (43) or OrigSendingTime (122).

Maker API Gap-fill (recovery) for Maker API is disabled by default to prevent sending out old orders that are no longer relevant. In case a Resend Request (35=2) from the maker side is sent: we will reply with Sequence Reset (35=4) and the latest NewSeqNo (36). We can enable Gap-fill but it is not recommended.

FIX Header and Trailer

The following defines the FIX messages standard header and trailer.

Header

Tag	Name	Mandatory
8	BeginString	Y
9	BodyLength	Y
34	MsgSeqNum	Y
35	MsgType	Y
49	SenderCompID	Y
50	SenderSubID	Y
52	SendingTime	Y
56	TargetCompID	Y
43	PossDupFlag	N
122	OrigSendingTime	N

Trailer

Tag	Name	Mandatory
10	CheckSum	Y

Websocket API Introduction

Cypator websocket provides two websocket session for communication.

Market session - used for market data subscription requests and streaming prices.
Trade session - used for sending orders and receiving execution reports.

Market and Trade session require valid login, server identifier, client identifier and password(used only for hashing) for authentication.

Websocket API Connectivity

Only one market and trade connection per client supported, on new connection previous connection will be dropped.
When the trade session goes down market data feed will not be consumed (Maker API) even if the market session is connected. Market data snapshot consumption will resume after the trade session is reconnected.
Both market and trade session needs to be authenticated before any requests can be made.
To keep alive both the market and trade session, the client needs to send a ping message every 30 seconds.

Websocket API Sessions

The Cypator market websocket session supports the following subscription type:
- Snapshot
The Cypator market websocket session supports the following book type:
- Spot
The Cypator trading websocket session supports the two types of orders
- Limit
- Market
The Cypator trading websocket session supports the following Time in force (TIF):
- IOC - Immediate or Cancel
- FOK - Fill or kill

Environments

Cypator offer a UAT environment for client testing along with the Production environment.

Production

When onBoarding is done, Cypator will issue all the credentials necessary to connect to the production environment.

UAT

Cypator User Acceptance Testing (UAT) environment provides full trading capabilities allowing you to test any part of the Taker and Maker API for Both FIX and WebSocket Protocol.
Please note that your experience in UAT environments may differ slightly from that of the current production implementation and undergoes regular maintenance. Please contact us to start onBoarding and receive the necessary credentials to login. Once your UAT account has been set up, we will provide you a URL linke to be able to start and stop your environment on demand.

FIX Taker API

Logon

FIX 4.4 Client -> Cypator

This message is sent to initiate a FIX session and establishes the communication session, authenticates the connecting client, and initializes the message sequence number.

8=FIX.4.4|9=79|35=A|49=cc11|56=cs1|34=1|52=20221031-07:40:55|98=0|108=20|553=User1|554=123456|10=034|

FIX 4.4 Cypator -> Client

8=FIX.4.4|9=62|35=A|34=1|49=cs1|52=20221031-07:40:55.074|56=cc11|98=0|108=20|10=039|

FIX 4.2 Client -> Cypator

8=FIX.4.2|9=58|35=A|49=cc21|56=cs1|34=1|52=20221031-07:41:49|98=0|108=20|10=102|

FIX 4.2 Cypator -> Client

8=FIX.4.2|9=62|35=A|34=1|49=cs1|52=20221031-07:41:50.005|56=cc21|98=0|108=20|10=028|

Tag	Name	Mandatory	Description
35	MsgType	Y	A
98	EncryptMethod	Y	Y
108	HeartBtInt	Y	Y
141	ResetSeqNumFlag	N	Indicated that both parties of the FIX Session should reset their sequence numbers
553	Username	Y	Available only in FIX 4.4
554	Password	Y	Available only in FIX 4.4

Heartbeat

This message is sent during periods of application inactivity to ensure connection validity. The receiving party should always respond with a heartbeat message.

Tag	Name	Mandatory	Description
35	MsgType	Y	0
98	TestReqID	N	Required only when the heartbeat is in response to a Test Request Message

Test Request

This message is used to verify connectivity and synchronize sequence numbers. A test request should be responded to with a heartbeat from the recipient

Tag	Name	Mandatory	Description
35	MsgType	Y	1
98	TestReqID		Identifier to be returned in Heartbeat response

Logout

This message signals the normal termination of the trading session. A session terminated without a Logout message will be considered an abnormal condition.

Tag	Name	Mandatory	Description
35	MsgType	Y	5
55	Text	N

Market Data Request

Once the logon process is complete, Market Data Requests can be sent to the ECN. Cypator will respond immediately with either a Market Data Full Refresh (35=W) message or a Market Data Request Reject message (35=Y). Only a single product can be requested in each request. The client will receive both bid and ask prices in a single message. The ECN also supports layers (also known elsewhere as price bands or tiers). Quotes containing bid prices and quantities for all layers are always streamed in the same message, as is the case for quotes containing ask prices and quantities.

This message is used to subscribe/unsubscribe to market data rate information.

FIX 4.4 Client -> Cypator subscribe


8=FIX.4.4|9=99|35=V|49=cc12|56=cs1|34=8|52=20221031-07:43:44|262=1|263=1|264=0|146=1|55=BTC/USD|267=2|269=0|269=1|10=095|

FIX 4.2 Client -> Cypator subscribe


8=FIX.4.2|9=99|35=V|49=cc22|56=cs1|34=3|52=20221031-08:34:43|262=1|263=1|264=0|146=1|55=BTC/USD|267=2|269=0|269=1|10=089|

FIX 4.4 Client -> Cypator Unsubscribe


8=FIX.4.4|9=99|35=V|49=cc12|56=cs1|34=7|52=20221031-08:35:17|262=1|263=2|264=0|146=1|55=BTC/USD|267=2|269=0|269=1|10=097|

FIX 4.4 Client -> Cypator Unsubscribe


8=FIX.4.2|9=99|35=V|49=cc22|56=cs1|34=5|52=20221031-08:34:55|262=1|263=2|264=0|146=1|55=BTC/USD|267=2|269=0|269=1|10=095|

Tag	Name	Mandatory	Description
35	MsgType	Y	V
262	MDReqID	Y	Unique Market Data Request ID. This will be used in responses by Cypator or by the client to cancel a request. To unsubscribe from market data, the same ID must be sent with tag 263 = 2
263	SubscriptionRequestType	Y	1 – Snapshot + Updates (Subscribe) 2 – Disable Snapshot + Updates (Unsubscribe)
264	MarketDepth	Y	0 - Full Book 1 = Top of Book
265	MDUpdateType	N	0 - Full refresh
266	AggregatedBook	Y	N - Raw prices may or may not include the liquidity provider names.
267	NoMDEntryTypes	Y	Number of MDEntryType fields being requested. 2 - bid and offer Note – please make sure to request in tag 269 both Bid and Offer. Request for a single side will be rejected!!!
-> 269	MDEntryType	Y	Market Data entries types list: 0 - Bid 1 - Offer Repeated field: 269=0, 269=1
146	NoRelatedSym	Y	1 ( we allow only a single asset per subscription)
-> 55	Symbol	Y	Asset - “BTC/USD”
-> 64	FutSettDate	N	Value date YYYYMMDD. Currently unused, will be used once forward is supported.

Market Data Request Reject

FIX 4.4 Cypator -> Client


8=FIX.4.4|9=85|35=Y|34=106|49=cs1|52=20221031-09:03:57.488|56=cc12|58=Duplicate MDReqID|262=1|281=1|10=094|

FIX 4.2 Cypator -> Client


8=FIX.4.2|9=84|35=Y|34=84|49=cs1|52=20221031-08:58:35.817|56=cc22|58=Duplicate MDReqID|262=1|281=1|10=050|

Tag	Name	Mandatory	Description
35	MsgType	Y	Y
262	MDReqID	Y	The Unique ID of the received market data
281	MDReqRejReason	N	Reason for rejection 0 - Unknown Symbol 1 - Duplicate MDReqID 2 - Request not supported 3 - Insufficient Permissions

Market Data Snapshot Full

FIX 4.4 Cypator -> Client


8=FIX.4.4|9=710|35=W|34=8|49=cs1|52=20221031-08:35:11.416|56=cc12|55=BTC/USD|262=1|268=20|269=0|270=202.15|271=0.00000001|269=0|270=202.16|271=0.00000002|269=0|270=202.17|271=0.00000003|269=0|270=202.18|271=0.00000004|269=0|270=202.19|271=0.00000005|269=0|270=202.2|271=0.00000006|269=0|270=202.21|271=0.00000007|269=0|270=202.22|271=0.00000008|269=0|270=202.23|271=0.00000009|269=0|270=202.24|271=0.0000001|269=1|270=202.35|271=0.00000001|269=1|270=202.36|271=0.00000002|269=1|270=202.37|271=0.00000003|269=1|270=202.38|271=0.00000004|269=1|270=202.39|271=0.00000005|269=1|270=202.4|271=0.00000006|269=1|270=202.41|271=0.00000007|269=1|270=202.42|271=0.00000008|269=1|270=202.43|271=0.00000009|269=1|270=202.44|271=0.0000001|10=073|

FIX 4.2 Cypator -> Client


8=FIX.4.2|9=710|35=W|34=3|49=cs1|52=20221031-08:34:44.164|56=cc22|55=BTC/USD|262=1|268=20|269=0|270=202.15|271=0.00000001|269=0|270=202.16|271=0.00000002|269=0|270=202.17|271=0.00000003|269=0|270=202.18|271=0.00000004|269=0|270=202.19|271=0.00000005|269=0|270=202.2|271=0.00000006|269=0|270=202.21|271=0.00000007|269=0|270=202.22|271=0.00000008|269=0|270=202.23|271=0.00000009|269=0|270=202.24|271=0.0000001|269=1|270=202.35|271=0.00000001|269=1|270=202.36|271=0.00000002|269=1|270=202.37|271=0.00000003|269=1|270=202.38|271=0.00000004|269=1|270=202.39|271=0.00000005|269=1|270=202.4|271=0.00000006|269=1|270=202.41|271=0.00000007|269=1|270=202.42|271=0.00000008|269=1|270=202.43|271=0.00000009|269=1|270=202.44|271=0.0000001|10=072|

Tag	Name	Mandatory	Description
35	MsgType	Y	W
262	MDReqID	Y	The Unique ID of the received market data request
55	Symbol	Y	e.g “BTC/USD”
268	NoMDEntries	Y	No. of market data updates in the message
-> 269	MDEntryType	Y	‘0’ (Bid) ‘1’ (Offer)
-> 270	MDEntryPx	Y	Price of entry
-> 271	MDEntrySize	Y	Quantity of entry

FIX 4.4 Cypator -> Client


8=FIX.4.4|9=100|35=W|34=268|49=cs1|52=20230619-09:45:58.883|56=cc12|55=ETH/USD|262=1|268=0|10=184|

FIX 4.2 Cypator -> Client


8=FIX.4.2|9=100|35=W|34=268|49=cs1|52=20230619-09:45:58.883|56=cc12|55=ETH/USD|262=1|268=0|10=184|

New Order Single

A new order single message enables the client to send a request for a trade to the ECN. Cypator requires that the ClOrdID <11> be unique.

FIX 4.4 Client -> Cypator


8=FIX.4.4|9=133|35=D|49=cc11|56=cs1|34=113|52=20221031-09:10:46|11=1598950759|21=1|55=BTC/USD|54=1|60=20221031-09:10:46|40=2|44=19123.20|38=100|59=4|10=003|

FIX 4.2 Client -> Cypator


8=FIX.4.2|9=133|35=D|49=cc21|56=cs1|34=113|52=20221031-09:11:04|11=1805964193|21=1|55=BTC/USD|54=1|60=20221031-09:11:04|40=2|44=19123.20|38=100|59=4|10=23

Tag	Name	Mandatory	Description
35	MsgType	Y	D
11	ClOrdID	Y	Client Order ID – must be unique
1	Account	N	Client Account name
60	TransactTime	Y	The transaction timestamp of the orde
15	Currency	N	The currency or coin unit that represents the quantity
54	Side	Y	1 (Buy) 2 (Sell)
55	Symbol	Y	The Asset - Coin and currency combination, e.g EUR/USD, BTC/USD, ETH/BTC
38	OrderQty	Y	The order quantity
40	OrdType	Y	1 – Market 2 – Limit
44	Price	N
59	TimeInForce	Y	1 – Good Till Cancel 3 – Immediate or Cancel (Default if no value provided) 4 – Fill or Kill
64	FutSettDate (FIX 4.2) SettlDate (FIX 4.4)	N	Value date YYYYMMDD. Required for forward Will be supported in the future. Use FutSettDate if using FIX 4.2 Use SettlDate if using FIX 4.4
126	ExpireTime	N	Not supported in phase 1- Required for Good-Till-Date order request. Date and Time of the order expiration specified in YYYYMMDD-HH:MM:SS format. Expressed in GMT.

Reject

This message is used by Cypator to reject any message. This can happen if the message doesn’t comply with the FIX dictionary, naming issue, or bad input.

Tag	Name	Mandatory	Description
35	MsgType	Y	3
45	RefSeqNum	Y	Integer value -reference of the rejected order header sequence number MsgSeqNum <34>
371	RefTagID	N	The tag number of the FIX field being referenced
372	RefMsgType	N	The message type (35) OF THE Fix message being referenced (e.g “D” for 35=D)
373	SessionRejectReason	N	Code to identify reason for rejection: 0 = Invalid tag number 1 = Required tag missing 2 = Tag not defined for this message type 3 = Undefined Tag 4 = Tag specified without a value 5 = Value is incorrect (out of range) for this tag 6 = Incorrect data format for value 7 = Decryption problem 8 = Signature <89> problem 9 = CompID problem 10 = SendingTime <52> accuracy problem 11 = Invalid MsgType <35> 12 = XML Validation error 13 = Tag appears more than once 14 = Tag specified out of required order 15 = Repeating group fields out of order 16 = Incorrect NumInGroup count for repeating group 17 = Non "Data" value includes field delimiter ( character) 99 = Other
58	Text	N	Error message text

Execution Report

This message is used to communicate Order Ack, Order Reject, Order Fill and Order Status Responses.

There are Four possible 35=8 responses to an order
- Ack - 150 =0
- NACK - 150=8
- Fill - partial - 150 =2/F, 39=1
- Fill - full - 150 =2/F, 39=2

For a FOK type order, there are two possible responses – as an example if the order is for 5 BTC/USD

Scenario 1 – FOK – order is not filled - CANCEL

Sequence	Message
Cancel message is provided	Execution report (35=8) ExecType (150=4) OrdStatus (39=4)

Scenario 2 – FOK – order is fully filled - DONE

Sequence	Message
Full Fill message is provided for 5 BTC	Execution report (35=8) ExecType (150=2/F) OrdStatus (39=2)

For an IOC type order, there are two additional possible responses in addition to the ones above which may happen in the case of multiple partial fills. We use the OrdStatus tag to indicate if the order is partial or fully complete – as an example if the order is for 5 BTCUSD

Scenario1 – IOC – order is fully filled - DONE

Sequence	Message
Fill message for 2 BTC is provided	Execution report (35=8) ExecType (150=2/F) OrdStatus (39=1)
Cancel remaining message is provided for the remaining 3 BTC	Execution report (35=8) ExecType (150=4) OrdStatus (39=1)

FIX 4.4 Cypator -> Client Ack


8=FIX.4.4|9=197|35=8|34=112|49=cs1|52=20221031-09:10:46.686|56=cc11|11=1598950759|14=0|15=BTC|17=1598950759|32=0|37=A010tlPyxyg|39=0|41=1598950759|44=19123.2|54=1|55=BTC/USD|60=20221031-11:10:46.686|150=0|151=100|10=012|

FIX 4.2 Cypator -> Client Ack


8=FIX.4.2|9=197|35=8|34=113|49=cs1|52=20221031-09:11:04.479|56=cc21|11=1805964193|14=0|15=BTC|17=1805964193|20=0|32=0|37=A010tlPyxyh|39=0|41=1805964193|44=19123.2|54=1|55=BTC/USD|60=20221031-11:11:04.479|150=0|151=100|10=223|

FIX 4.4 Cypator -> Client


8=FIX.4.4|9=228|35=8|34=113|49=cs1|52=20221031-09:10:46.706|56=cc11|6=19123.2|11=1598950759|14=100|15=BTC|17=VuzGNOBG|31=19123.2|32=100|37=A010tlPyxyg|38=100|39=2|41=1598950759|44=19123.2|54=1|55=BTC/USD|60=20221031-11:10:46.706|64=202210304|150=F|151=0|10=153|

FIX 4.2 Cypator -> Client


8=FIX.4.2|9=228|35=8|34=114|49=cs1|52=20221031-09:11:04.480|56=cc21|6=19123.2|11=1805964193|14=100|15=BTC|17=CAfoHyfD|20=2|31=19123.2|32=100|37=A010tlPyxyh|38=100|39=2|41=1805964193|44=19123.2|54=1|55=BTC/USD|60=20221031-11:11:04.480|64=202210304|150=2|151=0|10=136|

Tag	Name	Mandatory	Description
35	MsgType	Y	8
1	Account	N	Counterparty account name, supported only in Direct mode (non prime broker flow)
198	SecondaryOrderID	N	Counterparty order ID, supported only in Direct mode (non prime broker flow)
527	SecondaryExecID	N	Counterparty exec ID, supported only in Direct mode (non prime broker flow)
11	ClOrdID	Y	Client Order ID
37	OrderID	Y	Cypator unique order ID for the Trade
17	ExecID	N	Cypator Execution ID. Unique ID in each execution report. case sensitive
20	ExecTransType	Y - FIX 4.2 N- FIX 4.4	Only applicable to Fix 4.2 0= New 1 = Cancel 2 = Correct
150	ExecType	Y	FIX 4.2 0 = New 1 = Partially Fill 2 = Fill 4 = Canceled 8 = Rejected A = Pending New 9 = Suspended I = Order Status FIX 4.4 0 = New F = Trade (partial fill or fill) 4 = Canceled 8 = Rejected A = Pending New 9 = Suspended I = Order Status
39	OrdStatus	Y	0 = New 1 = Partially Fill 2 = Fill 4 = Canceled 8 = Rejected A = Pending New 9 = Suspended
64	FutSettDate	N	Settlement date for order fills if exists. In YYYYMMDD format (please see comment below regarding the nature of the date)
15	Currency	N	The currency or coin unit that represents the quantity
40	OrdType	N	1 = Market 2 = Limit
54	Side	Y	1 (Buy) 2 (Sell)
55	Symbol	Y	The Asset - Coin and currency combination, e.g. EUR/USD, BTC/USD, ETH/BTC
38	OrderQty	N	Order quantity specified by the Client. Not present in Order Reject
14	CumQty	Y	The amount that has been filled so far
6	AvgPx	N	Average price of all fills on for the order
31	LastPx	N	Trade price.
32	LastQty (For Fix4.4) LastShares (For Fix4.2)	Y	Amount bought or sold on this fill
44	Price	Y	Order price
151	LeavesQty	Y	Quantity remaining of this order
60	TransactTime	Y	The transaction timestamp of the order
103	OrdRejReason	N	Error code. Present in Order Reject
58	Text	N	Error message. Present in Order Reject

Order Cancel Request

This message is used by the client to cancel any live order they may have. Applicable for orders of type GTC.
In case Cypator is unable to cancel the order a Cancel Rejected (35=9) message will be sent as a response.
In case Cypator was able to cancel the order an Execution Report (35=8) with status cancel for OrdStatus and ExecType (39=4, 150=0) will be sent back.

FIX 4.4 Client -> Cypator

8=FIX.4.4|9=109|35=F|49=cc11|56=cs1|34=15|52=20240326-12:50:52|41=1598950759|11=1598950759|55=BTC/USD|60=20240326-12:50:52|37=A010tlPyxyg|10=232|

FIX 4.2 Client -> Cypator

8=FIX.4.2|9=109|35=F|49=cc11|56=cs1|34=15|52=20240326-12:50:52|41=1598950759|11=1598950759|55=BTC/USD|60=20240326-12:50:52|37=A010tlPyxyg|10=232|

Tag	Name	Mandatory	Description
35	MsgType	Y	F
1	Account	N	Client Account name
11	ClOrderID	Y	Client Order ID
37	OrderID	Y	The order ID of the order to be canceled
41	OrigClOrdID	Y	Client Order ID of Order being replaced
55	Symbol	Y	The Asset - Coin and currency combination, e.g. BTC/USD
60	TransactTime	Y	The transaction timestamp of the order cancel request

Cancel Rejected

This message is used by Cypator to reject a cancel order message. This can happen if the order is already filled or is in the process of getting filled.

FIX 4.4 Cypator -> Client

8=FIX.4.4|9=112|35=9|34=44|49=cs1|52=20240326-12:23:27.864|56=cc21|11=1598950759|37=A010tlPyxyg|39=8|41=1598950759|102=99|434=1|10=134|

FIX 4.2 Cypator -> Client

8=FIX.4.2|9=112|35=9|34=44|49=cs1|52=20240326-12:23:27.864|56=cc21|11=1598950759|37=A010tlPyxyg|39=8|41=1598950759|102=99|434=1|10=134|

Tag	Name	Mandatory	Description
35	MsgType	Y	9
11	ClOrderID	Y	Client Order ID
37	OrderID	Y	The order ID of the order to be canceled
39	OrderStatus	Y	8=Rejected Status of the order cancel request
41	OrigClOrdID	Y	Client Order ID of Order being rejected
434	CxlRejResponseTo	Y	1 – Order Cancel Request 2 – Order Cancel/Replace Request
102	CxlRejReason	N	1 – Order Cancel Request 2 – Order Cancel/Replace Request
58	Text	N	Error message
60	TransactTime	Y	The transaction timestamp of the order cancel request

Trade Capture Report

Used to report a trade between counterparties.

FIX 4.4 Cypator -> Client


8=FIX.4.4|9=239|35=AE|34=2|49=cs1|52=20221031-09:43:02.535|56=cc11|17=s1|31=1234.56|32=0.00025|55=BTC/USD|60=20221030-10:10:28.629|75=20190824|150=F|487=0|568=HjdFFY13|571=A010tlPGF9S|748=1|912=Y|552=1|54=1|37=s3|11=123546|453=1|448=1|447=C|452=17|15=BTC|10=031

Tag	Name	Mandatory	Description
35	MsgType	Y	AE
571	TradeReportID	Y	ID for this message
60	TransactTime	Y	The transaction timestamp of the order UTC
487	TradeReportTransType	Y	0-New
75	TradeDate	Y	Trade date in YYYYMMDD format. We use the creation date based on Transact time UTC
568	TradeRequestID	N	Request ID if the Trade Capture Report is in response to a Trade Capture Report Request
748	TotNumTradeReports	N	Number of trade reports returned - if this report is part of a response to a Trade Capture Report Request
912	LastRptRequested	N	Indicates if this is the last report in the response to a Trade Capture Report Request
150	ExecType	N	F - Trade
55	Symbol	Y	The Asset - Coin and currency combination, e.g. EUR/USD, BTC/USD, ETH/BTC
31	LastPx	Y	Price of the last fill. Only present in Fill report
32	LastQty	Y	Amount bought or sold on this fill
17	ExecID	N	Cypator Execution ID. Unique ID in each execution report
527	SecondaryExecID	N	Counterparty exec ID, supported only in Direct mode (non prime broker flow)
552	NoSides	Y	Number of sides
54	-> Side	Y	Trading Party
11	-> ClOrdID	Y	Order ID of the Trading party
37	-> OrderID	Y	Cypator unique order ID for the Trade
15	-> Currency/Coin	N	Identifies currency or coin used for price
1	-> Account	N	Counterparty account name, supported only in Direct mode (non prime broker flow)
40	-> OrdType	N	1 = Market 2 = Limit
198	-> SecondaryOrderID	N	Counterparty order ID, supported only in Direct mode (non prime broker flow)
453	-> NoPartyIDs	N	Number of parties
448	->-> PartyID	N	ID of the counterparty
447	->-> PartyIDSource	N	C – Generally accepted market participant
452	->-> PartyRole	N	The role of the party 17 – Contra Firm (the counterparty)

Request Trade Capture Report

In the event of a communication breakdown, or any other prerogative the client can send a “Request Trade Capture Report” message and include in it the Order Id for which they want to verify if a trade was created or not using ClOrdID <11>. The system will respond with AE drop copy messages for all created trades. Please note – an Order (if not of type FOK) may result in several trades and may be partially filled. The system will respond with all trades related to an order.

FIX 4.4 Client -> Cypator


8=FIX.4.4|9=76|35=AD|49=cc11|56=cs1|34=3|52=20221031-09:43:02|568=HjdFFY13|569=1|11=123546|10=182|

Tag	Name	Mandatory	Description
35	MsgType	Y	AD
568	TradeRequestID	Y	Identifier of the trade request
569	TradeRequestType	Y	1 = Matched trades matching Criteria provided on request (parties, exec id, trade id, order id, instrument, input source, etc.)
11	ClOrdID	Y	Unique identifier for Order as assigned by the client.

Trade Capture Report Request Ack

Indicate that no trades were found that matched the selection criteria specified on the Trade Capture Report Request (AQ).

No Trade - In this case the AQ msg is provided with Tag 750 =1 (Completed).
In the event that system is unable to provide a response the AQ msg is provided with Tag 750=2 (Rejected) and a reason will be provided in Tag 58
In the event the order has been “Timed Out” the AQ msg is provided with Tag 750=0 and a reason will be provided in Tag 58 “Time out”. In this case you can continue every 5 seconds to retry the Trade capture request (AD) until a final response is received.

FIX 4.4 Cypator -> Client


8=FIX.4.4|9=88|35=AQ|34=2|49=cs1|52=20221031-09:51:41.171|56=cc11|568=HjdFFY13|569=1|748=0|749=0|750=0|10=230

Tag	Name	Mandatory	Description
35	MsgType	Y	AQ
568	TradeRequestID	Y	Identifier of the trade request
569	TradeRequestType	Y	Type of trade capture report: 1 = Matched trades matching Criteria provided on request (parties, exec id, trade id, order id, instrument, input source, etc.)
748	TotNumTradeReports	N	Number of trade reports returned - if this report is part of a response to a Trade Capture Report Request
749	TradeRequestResult	Y	Result of trade request. Valid values: 0 = Successful (Default) 1 = Invalid or unknown instrument 2 = Invalid type of trade requested 3 = Invalid parties 4 = Invalid Transport Type requested 5 = Invalid Destination requested 8 = TradeRequestType <569> not supported 9 = Unauthorized for Trade Capture Report Request 99 = Other
750	TradeRequestStatus	Y	Status of trade request. Valid values 0 = Accepted 1 = Completed 2 = Rejected
58	Text	N	Free text

Order Status Request

The Order Status Request message is used by the client to generate an order status message and get details about it.

If information exists client will receive an Execution Report message with the order status and order information.
If information is missing client will get a Business Message Reject with the reject reason.

FIX 4.4 Client -> Cypator

8=FIX.4.4|9=90|35=H|49=cc11|56=cs1|34=16|52=20240902-08:40:11|55=BTC/USD|54=1|37=223456OID|11=223456COID|10=168

FIX 4.2 Client -> Cypator


8=FIX.4.2|9=90|35=H|49=cc11|56=cs1|34=16|52=20240902-08:40:11|55=BTC/USD|54=1|37=223456OID|11=223456COID|10=168

Tag	Name	Mandatory	Description
35	MsgType	Y	H
37	OrderID	Y	Unique identifier for Order as assigned by Cypator on the ER (35=8) ack
11	ClOrdID	Y	Unique identifier for Order as assigned by Client on the NOS (35=D)
55	Symbol	Y
54	Side	Y

Error Code

Text	Comments
Market Data Request (35=V)
Unsupported MDEntryType	Unknown side
Only Bid and Offer subscription allowed
Unsupported MDEntryType, only two side are allowed	Only Bid and Offer subscription is allowed
Unknown symbol
Symbol has an active subscription	Duplicate symbol subscription
Duplicate MDReqID
Unsupported SubscriptionRequestType	Tag 263

Order Status Request (35=H)
	Was unable to locate data for order ID
	Unknown order ID
	Server ERROR

New Order Single (35=D)
SetTimeInForce, not supported
SetTimeInForce, is missing
OrderQty must be greater than zero
Missing OrderQty	Amount is missing
Price must be greater than zero
Missing Price

Execution Report (35=8)
Term currency allowed only with FOK time in force	For term orders, only TIF FOK is allowed
Term currency does not support the instrument	Instrument is not supported for term orders
Order rejected due to being received late probably due to network latency	Order latency issue
Order throttling exceeded	Order rate limit
Possible duplicate orders are not supported (validated by tag 43)	Duplicate order was sent
Possible duplicate orders are not supported (validated by tag 122)	Duplicate order was sent
Order has exceeded the allowed amount of resting orders per instrument	Exceeded the amount of allowed resting orders (TIF:GTC, GTD)
Amount is smaller than instrument defined minimum amount of ...	Order amount it too small
Amount increment is out of range. increment value for instrument	Order amount increment is wrong

FIX Maker API

Logon

This message is sent to initiate a FIX session and establishes the communication session, authenticates the connecting Maker, and initializes the message sequence number.

FIX 4.4 Client -> Cypator

8=FIX.4.4|9=79|35=A|49=cc11|56=cs1|34=1|52=20221031-07:40:55|98=0|108=20|553=User1|554=123456|10=034|

FIX 4.4 Cypator -> Client

8=FIX.4.4|9=62|35=A|34=1|49=cs1|52=20221031-07:40:55.074|56=cc11|98=0|108=20|10=039|

FIX 4.2 Client -> Cypator

8=FIX.4.2|9=58|35=A|49=cc21|56=cs1|34=1|52=20221031-07:41:49|98=0|108=20|10=102|

FIX 4.2 Cypator -> Client

8=FIX.4.2|9=62|35=A|34=1|49=cs1|52=20221031-07:41:50.005|56=cc21|98=0|108=20|10=028|

Tag	Name	Mandatory	Description
35	MsgType	Y	A
98	EncryptMethod	Y	Y
108	HeartBtInt	Y	Y
141	ResetSeqNumFlag	N	Indicated that both parties of the FIX Session should reset their sequence numbers
553	Username	N	Available only in FIX 4.4
554	Password	N	Available only in FIX 4.4

Heartbeat

This message is sent during periods of application inactivity to ensure connection validity. The receiving party should always respond with a heartbeat message.

Tag	Name	Mandatory	Description
35	MsgType	Y	0
98	TestReqID	N	Required only when the heartbeat is in response to a Test Request Message

Test Request

This message is used to verify connectivity and synchronize sequence numbers. A test request should be responded to with a heartbeat from recipient

Tag	Name	Mandatory	Description
35	MsgType	Y	1
98	TestReqID	Y	Identifier to be returned in Heartbeat response

Logout

This message signals the normal termination of the trading session. A session terminated without a Logout message will be considered an abnormal condition.

Tag	Name	Mandatory	Description
35	MsgType	Y	5
55	Text	N

Market Data Request

Once the logon process is complete, Market Data Requests can be sent to the Maker. The Maker will respond immediately with either a Market Data Full Refresh (35=W) message or a Market Data Request Reject message (35=Y). Only a single request will be sent for each market data request. The ECN also supports layers (also known elsewhere as price bands or tiers). Quotes containing bid prices and quantities for all layers are always streamed in the same message, as is the case for quotes containing ask prices and quantities.

This message is used to subscribe/unsubscribe to market data rate information.

FIX 4.4 Cypator -> Client subscribe


8=FIX.4.4|9=99|35=V|49=cc12|56=cs1|34=8|52=20221031-07:43:44|262=1|263=1|264=0|146=1|55=BTC/USD|267=2|269=0|269=1|10=095|

FIX 4.2 Cypator -> Client subscribe


8=FIX.4.2|9=99|35=V|49=cc22|56=cs1|34=3|52=20221031-08:34:43|262=1|263=1|264=0|146=1|55=BTC/USD|267=2|269=0|269=1|10=089|

FIX 4.4 Cypator -> Client Unsubscribe


8=FIX.4.4|9=99|35=V|49=cc12|56=cs1|34=7|52=20221031-08:35:17|262=1|263=2|264=0|146=1|55=BTC/USD|267=2|269=0|269=1|10=097|

FIX 4.4 Cypator -> Client Unsubscribe


8=FIX.4.2|9=99|35=V|49=cc22|56=cs1|34=5|52=20221031-08:34:55|262=1|263=2|264=0|146=1|55=BTC/USD|267=2|269=0|269=1|10=095|

Tag	Name	Mandatory	Description
35	MsgType	Y	V
262	MDReqID	Y	Unique Market Data Request ID. This will be used in responses by Cypator or by the client to cancel a request. To unsubscribe from market data, the same ID must be sent with tag 263 = 2
263	SubscriptionRequestType	Y	1 – Snapshot + Updates (Subscribe) 2 – Disable Snapshot + Updates (Unsubscribe)
264	MarketDepth	Y	0 - Full Book
265	MDUpdateType	N	0 - Full refresh
266	AggregatedBook	Y	N - Raw prices may or may not include the liquidity provider names.
267	NoMDEntryTypes	Y	Number of MDEntryType fields being requested. 2 - bid and offer Note – please make sure to request in tag 269 both Bid and Offer. Request for a single side will be rejected!!!
-> 269	MDEntryType	Y	Market Data entries types list: 0 - Bid 1 - Offer Repeated field: 269=0, 269=1
146	NoRelatedSym	Y	1 ( we allow only a single asset per subscription)
-> 55	Symbol	Y	Asset - “BTC/USD”
-> 64	FutSettDate	N	Value date YYYYMMDD. Currently unused, will be used once forward is supported.

Market Data Request Reject

FIX 4.4 Client -> Cypator


8=FIX.4.4|9=85|35=Y|34=106|49=cs1|52=20221031-09:03:57.488|56=cc12|58=Duplicate MDReqID|262=1|281=1|10=094

FIX 4.2 Client -> Cypator


8=FIX.4.2|9=84|35=Y|34=84|49=cs1|52=20221031-08:58:35.817|56=cc22|58=Duplicate MDReqID|262=1|281=1|10=050|

Tag	Name	Mandatory	Description
35	MsgType	Y	Y
262	MDReqID	Y	The Unique ID of the received market data
281	MDReqRejReason	N	Reason for rejection 0 - Unknown Symbol 1 - Duplicate MDReqID 2 - Request not supported 3 - Insufficient Permissions

Market Data Snapshot Full

FIX 4.4 Client -> Cypator


8=FIX.4.4|9=710|35=W|34=8|49=cs1|52=20221031-08:35:11.416|56=cc12|55=BTC/USD|262=1|268=20|269=0|270=202.15|271=0.00000001|269=0|270=202.16|271=0.00000002|269=0|270=202.17|271=0.00000003|269=0|270=202.18|271=0.00000004|269=0|270=202.19|271=0.00000005|269=0|270=202.2|271=0.00000006|269=0|270=202.21|271=0.00000007|269=0|270=202.22|271=0.00000008|269=0|270=202.23|271=0.00000009|269=0|270=202.24|271=0.0000001|269=1|270=202.35|271=0.00000001|269=1|270=202.36|271=0.00000002|269=1|270=202.37|271=0.00000003|269=1|270=202.38|271=0.00000004|269=1|270=202.39|271=0.00000005|269=1|270=202.4|271=0.00000006|269=1|270=202.41|271=0.00000007|269=1|270=202.42|271=0.00000008|269=1|270=202.43|271=0.00000009|269=1|270=202.44|271=0.0000001|10=073|

FIX 4.2 Client -> Cypator


8=FIX.4.2|9=710|35=W|34=3|49=cs1|52=20221031-08:34:44.164|56=cc22|55=BTC/USD|262=1|268=20|269=0|270=202.15|271=0.00000001|269=0|270=202.16|271=0.00000002|269=0|270=202.17|271=0.00000003|269=0|270=202.18|271=0.00000004|269=0|270=202.19|271=0.00000005|269=0|270=202.2|271=0.00000006|269=0|270=202.21|271=0.00000007|269=0|270=202.22|271=0.00000008|269=0|270=202.23|271=0.00000009|269=0|270=202.24|271=0.0000001|269=1|270=202.35|271=0.00000001|269=1|270=202.36|271=0.00000002|269=1|270=202.37|271=0.00000003|269=1|270=202.38|271=0.00000004|269=1|270=202.39|271=0.00000005|269=1|270=202.4|271=0.00000006|269=1|270=202.41|271=0.00000007|269=1|270=202.42|271=0.00000008|269=1|270=202.43|271=0.00000009|269=1|270=202.44|271=0.0000001|10=072|

Tag	Name	Mandatory	Description
35	MsgType	Y	W
262	MDReqID	Y	The Unique ID of the received market data request
55	Symbol	Y	e.g “BTC/USD”
268	NoMDEntries	Y	No. of market data updates in the message
-> 269	MDEntryType	Y	‘0’ (Bid) ‘1’ (Offer)
-> 270	MDEntryPx	Y	Price of entry
-> 271	MDEntrySize	Y	Quantity of entry

New Order Single

A new order single message enables the ECN to send a request for a trade to the Maker. Cypator will provide a unique ClOrdID <11>.

FIX 4.4 Cypator -> Client


8=FIX.4.4|9=133|35=D|49=cc11|56=cs1|34=113|52=20221031-09:10:46|11=1598950759|21=1|55=BTC/USD|54=1|60=20221031-09:10:46|40=2|44=19123.20|38=100|59=4|10=003|

FIX 4.2 Cypator -> Client


8=FIX.4.2|9=133|35=D|49=cc21|56=cs1|34=113|52=20221031-09:11:04|11=1805964193|21=1|55=BTC/USD|54=1|60=20221031-09:11:04|40=2|44=19123.20|38=100|59=4|10=236|

Tag	Name	Mandatory	Description
35	MsgType	Y	D
11	ClOrdID	Y	Client Order ID – must be unique. case sensitive
1	Account	N	Client Account name
60	TransactTime	Y	The transaction timestamp of the orde
15	Currency	N	The currency or coin unit that represents the quantity
54	Side	Y	1 (Buy) 2 (Sell)
55	Symbol	Y	The Asset - Coin and currency combination, e.g EUR/USD, BTC/USD, ETH/BTC
38	OrderQty	Y	The order quantity
40	OrdType	Y	1 – Market 2 – Limit
44	Price	Y	Limit price if 40=2 If 40=1 the price is required for pre trade credit check
59	TimeInForce	Y	1 – Good Till Cancel 3 – Immediate or Cancel (Default if no value provided) 4 – Fill or Kill Note: OrdType=1 only supports TimeInForce=3 (IOC) OrdType=3 (Stop) only supports TimeInForce=1 (GTC) and 6 (GTD)
64	FutSettDate (FIX 4.2) SettlDate (FIX 4.4)	N	Value date YYYYMMDD. Required for forward Will be supported in the future. Use FutSettDate if using FIX 4.2 Use SettlDate if using FIX 4.4
126	ExpireTime	N	Not supported in phase 1- Required for Good-Till-Date order request. Date and Time of the order expiration specified in YYYYMMDD-HH:MM:SS format. Expressed in GMT.

Reject

This message is used by Cypator to reject any message. This can happen if the message doesn’t comply with the FIX dictionary, naming issue, or bad input.

Tag	Name	Mandatory	Description
35	MsgType	Y	3
45	RefSeqNum	Y	Integer value -reference of the rejected order header sequence number MsgSeqNum <34>
371	RefTagID	N	The tag number of the FIX field being referenced
372	RefMsgType	N	The message type (35) OF THE Fix message being referenced (e.g “D” for 35=D)
373	SessionRejectReason	N	Code to identify reason for rejection: 0 = Invalid tag number 1 = Required tag missing 2 = Tag not defined for this message type 3 = Undefined Tag 4 = Tag specified without a value 5 = Value is incorrect (out of range) for this tag 6 = Incorrect data format for value 7 = Decryption problem 8 = Signature <89> problem 9 = CompID problem 10 = SendingTime <52> accuracy problem 11 = Invalid MsgType <35> 12 = XML Validation error 13 = Tag appears more than once 14 = Tag specified out of required order 15 = Repeating group fields out of order 16 = Incorrect NumInGroup count for repeating group 17 = Non "Data" value includes field delimiter ( character) 99 = Other
58	Text	N	Error message text

Execution Report

This message is used to communicate Order Ack, Order Reject, Order Fill, Order canceled and Order Status Responses

There are Four possible 35=8 responses to an order
- Ack - 150 =0
- NACK - 150=8
- Fill - partial - 150 =2/F, 39=1
- Fill - full - 150 =2/F, 39=2

For a FOK type order, there are two possible responses – as an example if the order is for 5 BTC/USD

Scenario 1 – FOK – order is not filled - CANCEL

Sequence	Message
Cancel message is provided	Execution report (35=8) ExecType (150=4) OrdStatus (39=4)

Scenario 2 – FOK – order is fully filled - DONE

Sequence	Message
Full Fill message is provided for 5 BTC	Execution report (35=8) ExecType (150=2/F) OrdStatus (39=2)

Scenario1 – IOC – order is fully filled - DONE

Sequence	Message
Fill message for 2 BTC is provided	Execution report (35=8) ExecType (150=2/F) OrdStatus (39=1)
Cancel remaining message is provided for the remaining 3 BTC	Execution report (35=8) ExecType (150=4) OrdStatus (39=1)

FIX 4.4 Client -> Cypator Ack


8=FIX.4.4|9=197|35=8|34=112|49=cs1|52=20221031-09:10:46.686|56=cc11|11=1598950759|14=0|15=BTC|17=1598950759|32=0|37=A010tlPyxyg|39=0|41=1598950759|44=19123.2|54=1|55=BTC/USD|60=20221031-11:10:46.686|150=0|151=100|10=012|

FIX 4.2 Client -> Cypator Ack


8=FIX.4.2|9=197|35=8|34=113|49=cs1|52=20221031-09:11:04.479|56=cc21|11=1805964193|14=0|15=BTC|17=1805964193|20=0|32=0|37=A010tlPyxyh|39=0|41=1805964193|44=19123.2|54=1|55=BTC/USD|60=20221031-11:11:04.479|150=0|151=100|10=223|

FIX 4.4 Client -> Cypator


8=FIX.4.4|9=228|35=8|34=113|49=cs1|52=20221031-09:10:46.706|56=cc11|6=19123.2|11=1598950759|14=100|15=BTC|17=VuzGNOBG|31=19123.2|32=100|37=A010tlPyxyg|38=100|39=2|41=1598950759|44=19123.2|54=1|55=BTC/USD|60=20221031-11:10:46.706|64=202210304|150=F|151=0|10=153|

FIX 4.2 Client -> Cypator


8=FIX.4.2|9=228|35=8|34=114|49=cs1|52=20221031-09:11:04.480|56=cc21|6=19123.2|11=1805964193|14=100|15=BTC|17=CAfoHyfD|20=2|31=19123.2|32=100|37=A010tlPyxyh|38=100|39=2|41=1805964193|44=19123.2|54=1|55=BTC/USD|60=20221031-11:11:04.480|64=202210304|150=2|151=0|10=136|

Tag	Name	Mandatory	Description
35	MsgType	Y	8
1	Account	N	Client Account Name
11	ClOrdID	Y	Client Order ID
37	OrderID	Y	Cypator unique order ID for the Trade
17	ExecID	Y	Cypator Execution ID. Unique ID in each execution report
20	ExecTransType	Y - FIX 4.2 N- FIX 4.4	Only applicable to Fix 4.2 0= New 1 = Cancel 2 = Correct
150	ExecType	Y	FIX 4.2 0 = New 1 = Partially Fill 2 = Fill 4 = Canceled 8 = Rejected FIX 4.4 0 = New F = Trade (partial fill or fill) 4 = Canceled 8 = Rejected
39	OrdStatus	Y	0 = New 1 = Partially Fill 2 = Fill 4 = Canceled 8 = Rejected
64	FutSettDate	N	Settlement date for order fills if exists. In YYYYMMDD format
15	Currency	N	The currency or coin unit that represents the quantity
54	Side	Y	1 (Buy) 2 (Sell)
55	Symbol	Y	The Asset - Coin and currency combination, e.g. EUR/USD, BTC/USD, ETH/BTC
38	OrderQty	N	Order quantity specified by the Client. Not present in Order Reject
14	CumQty	Y	The amount that has been filled so far
6	AvgPx	N	Average price of all fills on for the order
31	LastPx	N	Trade price.
32	LastQty (For Fix4.4) LastShares (For Fix4.2)	Y	Amount bought or sold on this fill
44	Price	Y	Order price
151	LeavesQty	Y	Quantity remaining of this order
60	TransactTime	Y	The transaction timestamp of the order
103	OrdRejReason	N	Error code. Present in Order Reject
58	Text	N	Error message. Present in Order Reject

Websocket API Signature

Signature needs to be generated at the time of login request. It can be generated using the following steps:

Generate a string by concatenating password and constant string "/verify"
Signature would be Base64 encoded hash of the above string generates using HMAC SHA256 algorithm.

Java code sample

import javax.crypto.Mac;
import javax.crypto.spec.SecretKeySpec;
import java.util.Base64;

public class SignatureDemo {

  public static String getSign(String passPhrase, long timeStamp) {
    try {
      String stringToHashAndEncode = timeStamp + "/verify";
      Mac sha256HMAC = Mac.getInstance("HmacSHA256");

      SecretKeySpec secretKeySpec = new SecretKeySpec(passPhrase.getBytes(), "HmacSHA256");
      sha256HMAC.init(secretKeySpec);
      String hash = Base64.getEncoder().encodeToString(sha256HMAC.doFinal(stringToHashAndEncode.getBytes()));
      return hash;
    } catch (Throwable t) {
      return null;
    }
  }

  public static void main(String[] args) {
    String signature = getSign("UfawYizemLAHMyAezkYQqLtQ3uJ9UQaXXJg6vrvL", System.currentTimeMillis());
    System.out.println("Signature : " + signature);
  }
}

Python Example


  import hashlib
  import hmac
  import base64

  string_to_hash_and_encode = timeStamp + "/verify"
  hash_obj = hmac.new(secret_key, message, hashlib.sha256)
  hash_value = base64.b64encode(hash_obj.digest()).decode("utf-8")

shell Example

getSign() {
    local passPhrase=$1
    local timeStamp=$2

    local stringToHashAndEncode="${timeStamp}/verify"
    local hash

    hash=$(echo -n "$stringToHashAndEncode" | openssl dgst -sha256 -hmac "$passPhrase" -binary | base64)
}

# Example usage:
passPhrase="UfawYizemLAHMyAezkYQqLtQ3uJ9UQaXXJg6vrvL"
timeStamp="1695616595908"

result=$(getSign "$passPhrase" "$timeStamp")
echo "Result: $result"

Websocket Maker API

Client -> Cyaptor.
Both market and trade session needs to be authenticated before any requests can be made.

Request parameters

Request

{
  "op": "logon",
  "arg": {
    "apiKey": "User1",
    "sign": "7L+zFQ+CEgGu5rzCj4+BdV2/uUHGqddA9pI6ztsRRPs=",
    "server": "cs1",
    "client": "cc11"
  },
  "ts": 1667835722651
}

Parameter	Type	Required	Description
op	String	Yes	Operation logon
arg	Object	Yes	Login details
-> apiKey	String	Yes	API Key
-> sign	String	Yes
-> server	String	Yes	Server id
-> client	String	Yes	Client id
ts	String	Yes	Unix epoch time

Response

Success Response

{
  "op": "logon",
  "arg": {
    "code": 0
  },
  "ts": 1682346263287
}

Error response

{
  "op": "logon",
  "arg": {
    "code": 50104,
    "errMsg": "Invalid credentials"
  },
  "ts": "1682346263287"
}

Parameter	Type	Required	Description
op	String	Yes	Operation logon
arg	Object	Yes	Login details
-> code	int	Yes	0 - success non zero for failure
-> errMsg	String	no	Error message, populated only in case of error
ts	String	Yes	Unix epoch time

Ping

Client -> Cypator.
To keep the connection alive client needs to send a heartbeat message ping once every 30 seconds. If no heartbeat message is received for 30 seconds connection will be dropped.

Request

{
  "op": "ping"
}

Response

{
  "op": "ping"
}

Parameter	Type	Required	Description
op	String	Yes	Operation ping

Subscription

Cyaptor -> Client.
Subscription request sent from Cypator to Maker. this message will be used for both subscribe and unsubscribe instrument.

Request parameter

Request subscribe

{
  "op": "subscribe",
  "arg": {
    "instrument": "ETH/USD",
    "side": "BOTH",
    "subscriptionId": "123456",
    "subscriptionRequestType": "snapshot",
    "typeBook": "SPOT",
    "aggBook": "0"
  },
  "ts": 1667835722651
}

Request unsubscribe

{
  "op": "unsubscribe",
  "arg": {
    "instrument": "ETH/USD",
    "subscriptionId": "123456",
    "typeBook": "SPOT"
  },
  "ts": 1667835722651
}

Parameter	Type	Required	Description
op	String	Yes	Operation subscribe
arg	Object	Yes	Operation subscribe
-> instrument	String	Yes	Instrument name
-> side	String	Yes	side, possible value: BOTH
-> subscriptionId	String	Yes	Unique Market Data Request ID
-> subscriptionRequestType	String	Yes	Subscription type, values: snapshot
-> typeBook	String	Yes	Type of book, values: SPOT
-> AggregatedBook	int	no	always No (0)
ts	String	Yes	Unix epoch time

Response parameter

Acknowledgement success response

{
  "op": "subscribe",
  "arg": {
    "instrument": "ETH/USD",
    "side": "BOTH",
    "subscriptionId": "123456",
    "subscriptionRequestType": "snapshot",
    "typeBook": "SPOT",
    "code" : 0
  },
  "ts": 1667835722651
}

Acknowledgement failure response

  {
  "op": "subscribe",
  "arg": {
    "instrument": "ETH/USD",
    "side": "BOTH",
    "subscriptionId": "123456",
    "subscriptionRequestType": "snapshot",
    "typeBook": "SPOT",
    "code" : 50202,
    "errMsg" : "Unknown symbol"
  },
  "ts": 1667835722651
}

Parameter	Type	Required	Description
op	String	Yes	Operation subscribe
arg	Object	Yes	subscription details
-> instrument	String	Yes	Instrument name
-> side	String	Yes	side, possible value: BOTH
-> subscriptionId	String	Yes	Unique Market Data Request ID, echoed back from subscribe
-> subscriptionRequestType	String	Yes	Subscription type echoed back from subscribe, values: snapshot
-> typeBook	String	Yes	Type of book echoed back from subscribe, values: SPOT
-> code	String	Yes	Zero for success, non-zero in case of failure, refer error codes table for standard error. In case of a missing error code, any-non zero value is accepted
-> errMsg	String	No	To be populate in case of failure only. Standard error defined in the table. In case of missing error code custom error message is accepted
ts	String	Yes	Unix epoch time

Market Data

Client -> Cypator.
For snapshot message, Cypator won’t send an acknowledgement.

snapshot

{
  "op": "snapshot",
  "arg": {
    "instrument": "BTC/USD",
    "subscriptionId": "123456"
  },
  "data": [
    {
      "bids": [
        [191235,1],
        [191234,2],
        [191233,3],
        [191232,4],
        [191231,5]
      ],
      "asks": [
        [201231,1],
        [201232,2],
        [201233,3],
        [201234,4],
        [201235,5]
      ]
    }
  ],
  "ts": "1667835722653"
}

Parameter	Type	Required	Description
op	String	Yes	Operation snapshot
arg	Object	Yes	snapshot details
-> instrument	String	Yes	Instrument name
-> subscriptionId	String	Yes	Subscription Id as configured on subscribe
data	Array	Yes	List of items
--> bids	Array of double	Yes	List of double, first parameter is price, second quantity
--> asks	Array of double	Yes	List of double, first parameter is price, second quantity
ts	String	Yes	Unix epoch time

Order

Cyaptor -> Client.

Request

Order create request sent from Cypator

{

  "op": "order",
  "arg": {
    "instrument": "BTC/USD",
    "side": "BUY",
    "clOrderId": "VeYQxMUFGdtljI",
    "orderType": "LIMIT",
    "tif": "FOK",
    "account": "tag1",
    "quantity": 2.0,
    "price": 201232.0
  },
  "ts": "1682422430612"
}

Parameter	Type	Required	Description
op	String	Yes	Operation order
arg	Object	Yes	Order details
-> instrument	String	Yes	Instrument name
-> side	String	Yes	Side of the order. Values: BUY SELL
-> clOrderId	String	Yes	Order id
-> orderType	String	Yes	Type of order. Values: LIMIT MARKET
-> tif	String	Yes	Time in force. Values: FOK IOC
-> account	String	Yes	Optional tag, could be null
-> quantity	Double	Yes	Order quantity
-> price	Double	Yes	Order price
ts	String	Yes	Unix epoch time

Response (Acknowledgement)

Order acknowledgement success response

{

  "op": "order",
  "arg": {
    "instrument": "BTC/USD",
    "side": "BUY",
    "clOrderId": "VeYQxMUFGdtljI",
    "orderType": "LIMIT",
    "tif": "FOK",
    "account": "tag1",
    "quantity": 2.0,
    "price": 201232.0,
    "code" : 0
  },
  "ts": "1682422430612"
}

Order Single acknowledgement failure response

{

  "op": "order",
  "arg": {
    "instrument": "BT/USD",
    "side": "BUY",
    "clOrderId": "VeYQxMUFGdtljI",
    "orderType": "LIMIT",
    "tif": "FOK",
    "account": "tag1",
    "quantity": 2.0,
    "price": 201232.0,
    "code" : 50202,
    "errMsg": "Unknown symbol"
  },
  "ts": "1682422430612"
}

Parameter	Type	Required	Description
op	String	Yes	Operation order
arg	Object	Yes	Order details
-> instrument	String	Yes	Instrument name
-> side	String	Yes	Side of the order. Values: BUY SELL
-> clOrderId	String	Yes	Order id, Echoed back
-> orderType	String	Yes	Type of order. Values: LIMIT MARKET
-> tif	String	Yes	Time in force. Values: FOK IOC
-> account	String	No	Optional tag, could be null
-> quantity	Double	Yes	Order quantity
-> price	Double	Yes	Order price
-> code	String	Yes	Zero for success, non zero in case of failure, refer error codes table for standard error. In case of a missing error code, any-non zero value is accepted
-> errMsg	String	No	To be populate in case of failure only. Standard error defined in the table. In case of missing error code custom error message is accepted
ts	String	Yes	Unix epoch time

Trade

Client -> Cypator

{
  "op": "trade",
  "arg": {
    "instrument": "BTC/USD",
    "side": "BUY",
    "clOrderId": "uNQMAdtbxnVGJi",
    "orderId": "DF34rfswe32",
    "tradeId": "sada24DSGF",
    "orderType": "FOK",
    "state": "FILLED",
    "quantity": 2,
    "cumQty": 1,
    "lastQty": 1,
    "leaveQty": 0,
    "price": 201232
  },
  "ts": 1667835722653
}

Parameter	Type	Required	Description
op	String	Yes	Operation trade
arg	Object	Yes	Trade details
-> instrument	String	Yes	Instrument name
-> side	String	Yes	Side of the order. Values : BUY SELL
-> clOrderId	String	Yes	client order id, Echoed back from order
-> orderId	String	Yes	Order id
-> tradeId	String	Yes	Trade id
-> orderType	String	Yes	Type of order. Values: LIMIT MARKET
-> tif	String	Yes	Time in force. Values: FOK IOC
-> state	String	Yes	Order status. Values: FILLED PARTIALLY_FILLED REJECTED CANCELED
-> quantity	Double	Yes	Quantity
-> cumQty	Double	Yes	Cumulative quantity
-> lastQty	Double	Yes	Last quantity
-> leaveQty	Double	Yes	Leaves quantity
-> price	Double	Yes	Price
ts	String

Websocket Taker API

Client -> Cypator.
Both market and trade session needs to be authenticated before any requests can be made.

Request parameters

Request

{
  "op": "logon",
  "arg": {
    "apiKey": "User1",
    "sign": "7L+zFQ+CEgGu5rzCj4+BdV2/uUHGqddA9pI6ztsRRPs=",
    "server": "cs1",
    "client": "cc11"
  },
  "ts": 1667835722651
}

Parameter	Type	Required	Description
op	String	Yes	Operation logon
arg	Object	Yes	Login details
-> apiKey	String	Yes	API Key
-> sign	String	Yes
-> server	String	Yes	Server id
-> client	String	Yes	Client id
ts	String	Yes	Unix epoch time

Response

Success Response

{
  "op": "logon",
  "arg": {
    "code": 0
  },
  "ts": 1682346263287
}

Error response

{
  "op": "logon",
  "arg": {
    "code": 50104,
    "errMsg": "Invalid credentials"
  },
  "ts": "1682346263287"
}

Parameter	Type	Required	Description
op	String	Yes	Operation logon
arg	Object	Yes	Login details
-> code	int	Yes	0 - success non zero for failure
-> errMsg	String	no	Error message, populated only in case of error
ts	String	Yes	Unix epoch time

Ping

Client -> Cypator.
To keep the connection alive client needs to send a heartbeat message ping once every 30 seconds. If no heartbeat message is received for 30 seconds connection will be dropped.
Rate limit : 1 request per 15 seconds Connection dropped in case of rate limit breach.

Request

{
  "op": "ping"
}

Response

{
  "op": "ping"
}

Parameter	Type	Required	Description
op	String	Yes	Operation ping

Client -> Cyaptor.
Client will subscribe to desired instruments to be able to retrieve a stream of market data.

Request Example

{
  "op": "subscribe",
  "arg": {
    "instrument": "BTC/USD",
    "side": "BOTH",
    "subscriptionId": "FhervfD",
    "subscriptionRequestType": "snapshot",
    "typeBook": "SPOT",
    "aggBook": 0,
    "marketDepth":0
  },
  "ts": 1667835722651
}

Success Response Example

{
  "op": "subscribe",
  "arg":
  {
    "instrument": "BTC/USD",
    "side": "BOTH",
    "subscriptionId": "FhervfD",
    "subscriptionRequestType": "snapshot",
    "typeBook": "SPOT",
    "aggBook": 0,
    "marketDepth": 0,
    "code": 0
  },
  "ts": "1667835722651"
}

Error response Example

{
  "op": "subscribe",
  "arg":
  {
    "instrument": "BTC/USD",
    "side": "BOTH",
    "subscriptionId": "FhervfD",
    "subscriptionRequestType": "snapshot",
    "typeBook": "SPOT",
    "aggBook": 0,
    "marketDepth": 0,
    "errMsg": "Duplicate market data request symbol",
    "code": 50206
  },
  "ts": "1667835722651"
}

Request parameters

Parameter	Type	Required	Description
op	String	Yes	Operation subscribe
arg	Object	Yes	Subscription details
-> instrument	String	Yes	Instrument id
-> side	String	Yes	Side for subscription. Values BOTH
-> subscriptionId	String	Yes	Unique subscription id
-> subscriptionRequestType	String	Yes	Subscription type. Values: snapshot
-> typeBook	String	Yes	Type of book. Values: Spot
-> aggBook	Integer	Yes	Aggregate book. Values: 0 for false 1 for true
-> marketDepth	Integer	Yes	Market Depth. Values: 0 1
ts	Long	Yes	Unix epoch time

Response

Parameter	Type	Required	Description
op	String	Yes	Operation subscribe
arg	Object	Yes	Subscription details
-> instrument	String	Yes	Instrument id
-> side	String	Yes	Side for subscription. Values BOTH
-> subscriptionId	String	Yes	Unique subscription id
-> subscriptionRequestType	String	Yes	Subscription type. Values: snapshot
-> typeBook	String	Yes	Type of book. Values: Spot
-> aggBook	Integer	Yes	Aggregate book. Values: 0 for false 1 for true
-> marketDepth	Integer	Yes	Market Depth. Values: 0 1
-> code	int	Yes	Zero for success, non zero for failure
-> errMsg	String	No	Error message, populated only in case of error
ts	Long	Yes	Unix epoch time

Unsubscribe

Client -> Cyaptor.
To stop receiving market data unsubscribe call for the product needs to be made. Taker sends the below request to Cypator.

Request Example

{
  "op": "unsubscribe",
  "arg": {
    "subscriptionId": "FhervfD",
    "instrument": "BTC/USD",
    "typeBook": "SPOT"
  },
  "timestamp": 1667835722653
}

Success Response Example

{
    "op": "unsubscribe",
    "arg":
    {
        "subscriptionId": "FhervfD",
        "instrument": "BTC/USD",
        "typeBook": "SPOT",
        "code": "0"
    },
    "ts": 1706601058528
}

Error response Example

{
    "ts": "1667835722653",
    "op": "unsubscribe",
    "arg":
    {
        "subscriptionId": "FhervfD",
        "instrument": "BTC/USD",
        "typeBook": "SPOT",
        "errMsg": "Invalid subscription id",
        "code": 50251
    }
}

Request parameters

Parameter	Type	Required	Description
op	String	Yes	Operation subscribe
arg	Object	Yes	Subscription details
-> instrument	String	Yes	Instrument id
-> subscriptionId	String	Yes	Unique subscription id
-> typeBook	String	Yes	Type of book. Values: Spot
ts	Long	Yes	Unix epoch time

Response

Parameter	Type	Description
op	String	Operation subscribe
arg	Object	Subscription details
-> instrument	String	Instrument id
-> subscriptionId	String	Unique subscription id
-> typeBook	String	Type of book. Values: Spot
-> code	int	Zero for success, non zero for failure
-> errMsg	String	Error message, populated only in case of error
ts	Long	Unix epoch time

Market data snapshot

Cypator -> Client.
Once client subscribed to desired instrument a stream of market data snapshot will be sent to him.

Snapshot

{
    "op": "snapshot",
    "arg":
    {
        "instrument": "BTC/USD",
        "subscriptionId": "FhervfD"
    },
    "data":
    [
        {
            "bids":
            [
              [42732.79,0.1],
              [42732.78,0.2],
              [42732.77,0.3],
              [42732.76,0.4],
              [42732.75,0.5],
              [42732.74,0.6],
              [42732.73,0.6],
              [42732.72,0.7],
              [42732.71,0.8],
              [42732.70,0.9]
            ],
            "asks":
            [
              [42733.70,0.1],
              [42733.71,0.2],
              [42733.72,0.3],
              [42733.73,0.4],
              [42733.74,0.5],
              [42733.75,0.6],
              [42733.76,0.6],
              [42733.77,0.7],
              [42733.78,0.8],
              [42733.79,0.9]
            ]
        }
    ]
}

Request parameters

Parameter	Type	Description
op	String	Operation subscribe
arg	Object	Subscription details
-> instrument	String	Instrument name
-> subscriptionId	String	Unique identifier for subscription
data	Array	Array containing of object of bids and asks
-> bids	Array	List of bids. First item is price, second item is quantity.
-> asks	Array	List of asks. First item is price, second item is quantity.

Order

Client -> Cyaptor.
To place an order taker sends request to Cypator.

Order

{
  "op": "order",
  "arg": {
    "instrument": "BTC/USD",
    "side": "BUY",
    "clOrderId": "SDfcsef35",
    "orderType": "LIMIT",
    "tif": "FOK",
    "account": "tag1",
    "quantity": 100,
    "price": 19123
  },
  "ts": 1667835722653
}

Order acknowledgement success

{
    "op": "order",
    "arg":
    {
        "instrument": "BTC/USD",
        "side": "BUY",
        "clOrderId": "SDfcsef35",
        "orderType": "LIMIT",
        "tif": "FOK",
        "account": "tag1",
        "quantity": 100.0,
        "price": 19123.0,
        "code": 0
    },
    "ts": 1706601667000
}

Order acknowledgement failure

{
    "ts": "1667835722653",
    "op": "order",
    "arg":
    {
        "instrument": "BTC/USD",
        "side": "B",
        "clOrderId": "SDfcsef35",
        "orderType": "LIMIT",
        "tif": "FOK",
        "account": "tag1",
        "quantity": 100,
        "price": 19123,
        "errMsg": "Unsupported side, only BUY or SELL allowed",
        "code": 50301
    }
}

Request parameters

Parameter	Type	Required	Description
op	String	Yes	Operation subscribe
arg	Object	Yes	Subscription details
-> instrument	String	Yes	Instrument name
-> side	String	Yes	Side of order. Values : Buy, Sell
-> clOrderId	String	Yes	Unique identifier for order.
-> orderType	String	Yes	Order type. Values : MARKET, LIMIT
-> tif	String	Yes	Time in force for order. Values : FOK, IOC, GOOD_TILL_CANCEL
-> account	String	Yes	Name of account
-> quantity	Double	Yes	Quantity of order
-> price	Double	Yes	Price

Response

Parameter	Type	Description
op	String	Operation subscribe
arg	Object	Subscription details
-> instrument	String	Instrument name
-> side	String	Side of order. Values : Buy, Sell
-> clOrderId	String	Unique identifier for order.
-> orderId	String	Order id generated by Cypator for the placed order.
-> orderType	String	Order type. Values : MARKET, LIMIT
-> tif	String	Time in force for order. Values : FOK, IOC, GOOD_TILL_CANCEL
-> account	String	Name of account
-> quantity	Double	Quantity of order
-> price	Double	Price
-> code	int	Zero for success, non zero for failure
-> errMsg	String	Error message, populated only in case of error

Order

Active GTC orders can be canceled by sending a cancel request to Cypator either using client order id or order id. If order cancellation succeeds a trade with canceled state will be sent to the client. If order cancellation fails order cancellation failure message will be sent to client.

Order Cancellation using client order id

{
  "op": "cancel_order",
  "arg":
  {
    "clOrderId": "f8e065c2-087e-4f22-b5b9-748ba2fed2fb",
    "instrument": "BTC/USD"
  },
  "ts": "1667835722653"
}

Request parameters

Parameter	Type	Required	Description
op	String	Yes	Operation cancel_order
arg	Object	Yes	Order cancellation details
-> clOrderId	String	Yes	Client Order id
-> instrument	String	Yes	Instrument name

Order Cancellation using order id

{
    "op": "cancel_order",
    "arg":
    {
        "orderId": "A010uoqUy4S",
        "instrument": "BTC/USD"
    },
    "ts": "1726392007830"
}

Request parameters

Parameter	Type	Required	Description
op	String	Yes	Operation cancel_order
arg	Object	Yes	Order cancellation details
-> orderId	String	Yes	Order id generated by Cypator
-> instrument	String	Yes	Instrument name

Order Cancellation failure

{
    "op": "cancel_order",
    "arg":
    {
        "clOrderId": "cee79af3-8dac-4a2c-be7f-d73793f93b5d",
        "orderId": "A010uoqWW5g",
        "instrument": "BTC/USD",
        "code": 1,
        "errMsg": "Order cancellation failed for clientOrderId [cee79af3-8dac-4a2c-be7f-d73793f93b5d] error [error message]"
    },
    "ts": 1726392515132
}

Response parameters

Parameter	Type	Description
op	String	Operation cancel_order
arg	Object	Order cancellation details
-> orderId	String	Order id generated by Cypator
-> clOrderId	String	Client Order id
-> instrument	String	Instrument name
-> code	String	Error code
-> errMsg	String	Error message containing reason for cancellation failure

Trade

Cypator -> Client.
As a response for an order Cypator will reply with a trade.

Request Example

{
    "ts": "1706601667037",
    "op": "trade",
    "arg":
    {
        "instrument": "BTC/USD",
        "side": "BUY",
        "clOrderId": "SDfcsef35",
        "orderId": "A010u2PAFQD",
        "tradeId": "OGdjCsRA",
        "orderType": "LIMIT",
        "state": "FILLED",
        "quantity": 100.0,
        "cumQty": 100.0,
        "lastQty": 100.0,
        "leaveQty": 0.0,
        "lastPrice": 19123.2,
        "price": 19123.2,
        "avgPrice": 19123.2
    }
}

Request parameters

Parameter	Type	Description
op	String	Operation subscribe
arg	Object	Subscription details
-> instrument	String	Instrument name
-> side	String	Side of order. Values: Buy Sell
-> clOrderId	String	Unique identifier for order.
-> orderId	String	Order Id
-> tradeId	String	Trade id
-> orderType	String	Order type. Values: : MARKET LIMIT
-> state	String	State of the order. Values: FILLED CANCELED PARTIALLY_FILLED REJECTED
-> quantity	Double	Quantity of order
-> cumQuantity	Double	Cumulative quantity
-> lastQuantity	Double	Last quantity
-> leaveQuantity	Double	Leave Quantity
-> lastPrice	Double	Last Price
-> price	Double	price
-> avgPrice	Double	average price

Websocket API Error Codes

Error Code	Description
50100	Invalid authorization
50101	Already logged in
50102	Invalid login message
50103	Invalid credentials
50201	Invalid market data message
50202	Unknown symbol
50203	Unsupported subscription type
50204	Unsupported type book
50205	Duplicated market data request id
50206	Duplicate market data symbol
50250	Invalid market data unsubscribe message
50251	Invalid subscription id
50300	Invalid new order single message
50301	Unsupported side
50302	Invalid quantity
50303	Invalid order type
50304	Invalid time in force
50305	Missing time in force
50306	Invalid price
50307	Order throttling exceeded
50308	Invalid time stamp
50400	Invalid request

REST API

Signature

Signature needs to be generated at the time of login request. It can be generated using the following steps:

Generate a string by concatenating request body and timestamp. (For GET request only timestamp is used).
Signature would be Base64 encoded hash of the above string generated using HMAC SHA256 algorithm.

Java code sample

import javax.crypto.Mac;
import javax.crypto.spec.SecretKeySpec;
import java.util.Base64;

public class SignatureDemo {
  public static void main(String[] args) {
    String signature = getSign("secret-key", getTimestamp());
    System.out.println("Signature : " + signature);
  }

  public static String getSign(String passPhrase, long timeStamp) {
    try {
      String body = "{\"entity\": \"data-provider-1\"}";
      //String body = ""; if it's a get request or request with empty body
      String stringToHashAndEncode = body + timeStamp;
      Mac sha256HMAC = Mac.getInstance("HmacSHA256");

      SecretKeySpec secretKeySpec = new SecretKeySpec(passPhrase.getBytes(), "HmacSHA256");
      sha256HMAC.init(secretKeySpec);
      String hash = Base64.getEncoder()
        .encodeToString(sha256HMAC.doFinal(stringToHashAndEncode.getBytes()));
      return hash;
    } catch (Throwable t) {
      return null;
    }
  }

  public static long getTimestamp() {
    return System.currentTimeMillis();
  }
}

Balance

All Balances

Returns the balance of all entities supported by requesting entity.

Note : Use signature generation for this request and send it as X-SIGNATURE header for authentication.

HTTP Request

GET /api/balances

shell Example

Request : curl -X GET http://localhost:9095/api/balances \
-H "Content-Type: application/json" \
-H "X-API-KEY: <api_key>" \
-H "X-SIGNATURE: <signature>" \
-H "X-TIMESTAMP: 1734589071130"

Success Response : 200 OK
{
    "balance_data": [
        {
            "entity": "data-provider-1",
            "last_updated": "2024-12-18T05:11:36.796496076",
            "last_pull_time": "2024-12-18T05:11:36.796496076",
            "is_stale": false,
            "balances": [
                {
                    "asset": "BTC",
                    "available": 0.04000,
                    "total": 0.04000,
                    "currency": "BTC"
                },
                {
                    "asset": "USD",
                    "available": 6.35000,
                    "total": 6.35000,
                    "currency": "USD"
                },
                {
                    "asset": "ETH",
                    "available": -0.3525,
                    "total": -0.3525,
                    "currency": "ETH"
                }
            ]
        },
        {
            "entity": "data_provider-2",
            "last_error": "No data available !!",
            "is_stale": true
        }
    ],
    "requester": "consumer",
    "updated": "2024-12-18T05:12:22.420480047"
}

Response Fields

Field	Type	Description
balance_data	Json	Collection of balance details of all the Entities supported by given consumer
-> entity	String	Entity name
-> last_updated	String	The time when we were able to fetch data successfully from the entity
-> last_pull_time	String	The time when we attempted to fetch data from the entity
-> is_stale	Boolean	Flag to indicate if the data is stale or not
-> balances	Json	Collection of balance details of all the assets supported by given entity
-> -> asset	String	Asset name
-> -> available	Double	Available balance of the asset
-> -> total	Double	Total balance of the asset
-> -> currency	String	Currency of the asset
-> last_error	String	Error message in case of failure
requester	String	Name of the requester
updated	String	Time when the whole collection was updated

Balance By Entity

Returns the balance of a specific entity. You will have to specify the entity name in the request body.

Note : Use signature generation for this request and send it as X-SIGNATURE header for authentication.

HTTP Request

POST /api/balance

Request Body

{ "entity": "data-provider-1" }

shell Example

Request : curl -X POST http://localhost:9095/api/balance \
-H "Content-Type: application/json" \
-H "X-API-KEY: <api_key>" \
-H "X-SIGNATURE: <signature>" \
-H "X-TIMESTAMP: 1734547114593" \
-d "{\"entity\": \"data-provider-1\"}"

Success Response : 200 OK
{
    "balance_data": [
        {
            "entity": "data-provider-1",
            "last_updated": "2024-12-18T09:34:36.797084418",
            "last_pull_time": "2024-12-18T09:34:36.797084418",
            "is_stale": false,
            "balances": [
                {
                    "asset": "BTC",
                    "available": 0.04000,
                    "total": 0.04000,
                    "currency": "BTC"
                },
                {
                    "asset": "USD",
                    "available": 6.35000,
                    "total": 6.35000,
                    "currency": "USD"
                },
                {
                    "asset": "ETH",
                    "available": -0.3525,
                    "total": -0.3525,
                    "currency": "ETH"
                }
            ]
        }
    ],
    "requester": "consumer",
    "updated": "2024-12-18T09:35:18.349418383"
}

Response Fields

Field	Type	Description
balance_data	Json	Collection of balance details of all the Entities supported by given consumer
-> entity	String	Entity name
-> last_updated	String	The time when we were able to fetch data successfully from the entity
-> last_pull_time	String	The time when we attempted to fetch data from the entity
-> is_stale	Boolean	Flag to indicate if the data is stale or not
-> balances	Json	Collection of balance details of all the assets supported by given entity
-> -> asset	String	Asset name
-> -> available	Double	Available balance of the asset
-> -> total	Double	Total balance of the asset
-> -> currency	String	Currency of the asset
-> last_error	String	Error message in case of failure
requester	String	Name of the requester
updated	String	Time when the whole collection was updated

Server Time

Returns the current time in milliseconds. This endpoint is useful for synchronizing client-side operations with server time.

HTTP Request

GET /getServerTime

shell Example

Request : curl -X GET http://localhost:9095/getServerTime
Response : 1734333169077

Response Fields

Field	Type	Description
serverTime	string	The server's current time milliseconds.

Errors

HTTP Error codes :

Error Code	Meaning
401	Unauthorized - Invalid API Key
401	Unauthorized - Invalid Signature
400	Bad Request - Timestamp is too old.
400	Bad Request - Missing authentication headers.
500	Internal Server Error

Instruments

Cypator Instrument CSV doc

Version History

V1.3.3 - Thu, 27 Jan 2025

Market order messages do not require Price (44) anymore.

V1.3.2 - Thu, 26 Jan 2025

Instruments table was removed to support a dynamically updated file

V1.3.1 - Thu, 12 Sep 2024

Updated SOL precision from 4 digits to 3

V1.3.0 - Mon, 02 Sep 2024

Added Support for Order Status Request

V1.2.1 - Sat, 24 Aug 2024

SOL instrument minimum amount was changed to 1 from 10

V1.2.0 - Thu, 11 Jul 2024

Added Term Currency support for FIX Taker API

V1.1.4 - Thu, 11 Jul 2024

Default Min Order Amount and Amount Increment were updated for instruments:

BTC/USD
BTC/USDT
BTC/USDC
ETH/USD
ETH/USDC
ETH/USDT

V1.1.3 - Thu, 30 May 2024

Instrument table update

V1.1.2 - Wed, 1 May 2024

Resting order GTC support was added

V1.1.1 - Sun, 18 Feb 2024

New pair USDT/USDC was added to Instruments table

V1.1.0 - Wed, 31 Jan 2024

Websocket Taker API was added

V1.0.4 - Wed, 20 Dec 2023

Maker API will not support Gap-fill (recovery) as default
Taker API will send trade reject as a response for duplicate order

V1.0.3 - Sun, 12 Nov 2023

Taker API, Market Data Request (35=V) added support for top of book (TOB)

V1.0.2 - Thu, 9 Nov 2023

Instrument table update

Introduction

FIX Introduction

FIX Connectivity

FIX Session Time

FIX Sessions

FIX Post Trade

FIX Messages, Products and Support

FIX Duplicate check (recovery)

FIX Header and Trailer

Websocket API Introduction

Websocket API Connectivity

Websocket API Sessions

Environments

Production

UAT

FIX Taker API

Logon

Heartbeat

Test Request

Logout

Market Data Request

Market Data Request Reject

Market Data Snapshot Full

New Order Single

Reject

Execution Report

Scenario 1 – FOK – order is not filled - CANCEL

Scenario 2 – FOK – order is fully filled - DONE

Scenario1 – IOC – order is fully filled - DONE

Order Cancel Request

Cancel Rejected

Trade Capture Report

Request Trade Capture Report

Trade Capture Report Request Ack

Order Status Request

Error Code

FIX Maker API

Logon

Heartbeat

Test Request

Logout

Market Data Request

Market Data Request Reject

Market Data Snapshot Full

New Order Single

Reject

Execution Report

Scenario 1 – FOK – order is not filled - CANCEL

Scenario 2 – FOK – order is fully filled - DONE

Scenario1 – IOC – order is fully filled - DONE

Websocket API Signature

Websocket Maker API

Login

Request parameters

Response

Ping

Subscription

Request parameter

Response parameter

Market Data

Order

Request

Response (Acknowledgement)

Trade

Websocket Taker API

Login

Request parameters

Response

Ping

Subscribe

Request parameters

Response

Unsubscribe

Request parameters

Response

Market data snapshot

Request parameters

Order

Request parameters

Response
